  • PEEK steel wire--S304--OD1.5,-2.0mm

PEEK steel wire--S304--OD1.5,-2.0mm

Support hotline 13028890051

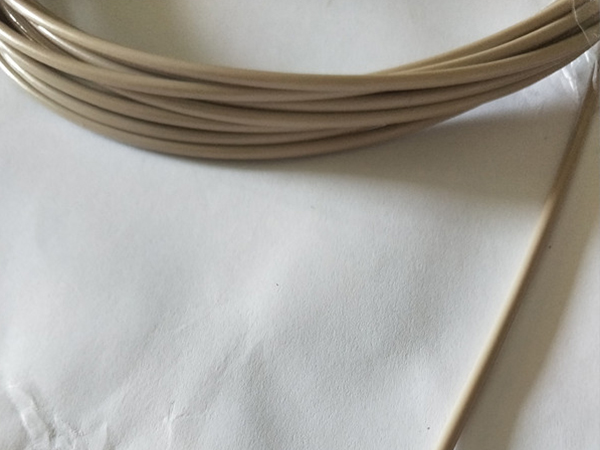

 CITCABLE: PEEK steel wire--S304--OD1.5,-2.0mm

Application:

1, Military specification cables

2,High Temperature Sesnor cables

3,Harsh Environment cables for extreme cold and/or heat

4,Control and Instrumentation cables

5,Thermocouple wire

6,Magnet wire peek insulation wire for Motor Class

7,Motor Rewind with peek insulation wire

8,  PEEK lead wire


Product Construction:

PEEK insulated wires with Silver-plated or Nickel-plated conductors

Conductor: 38awg to 6awg,

PEEK insulated OD: 0.25—10.0mm

 Key Features:

1, Working temperature:-75℃---- +260℃ ( 500°F)

2,300V, 600V rating or 50KV

3,Halogen free and low toxicity

4,Excellent radiation resistance

5,High Radiation Resistance 109 Rad= 107 Gy

6,PEEK cable outstanding and excellent abrasion resistance, dielectric strength, chemical resistance, thermal endurance in long. protects against corrosion

     CITCABLE  can make a crystalline, A semi-crystalline, non-crystalline peek wire cables, PEEK offers excellent mechanical properties and chemical resistance coupled with outstanding thermal and combustion characteristics Typical applications include nuclear power wiring, chemical processing, and ultrahigh vacuum (UHV) environments,PEEK insulated wire is available by custom order and in crystalline and amorphous; we can extrude this material in round, square. We can also provide PEEK insulated wire in stranded and other wire
